大功率激光焊接机

METAL JEWELRY LASER WELDING MACHINE
金属饰品激光焊接机

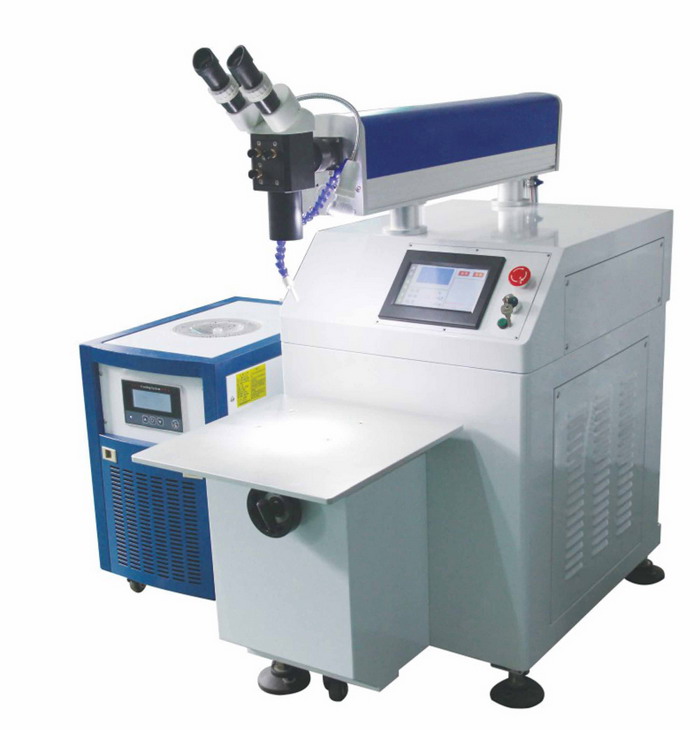

型号(Model):XJ-YAG-HJ200


注：设备不断改进，请以实际配置为准
Note: The continuous improvement of equipment,please
subject to actual configuration


主要技术指标
MAIN TECHNICAL SPECIFICATION


工作电压：三相220VAC/50HZ/30A
Working voltage: 单相380VAC/50HZ/40A


激光输出最大功率：200W
the maximum output power of the laser:


单脉冲最大能量：120J
single pulse energy:


脉冲宽度 0.1~20MS
pulse width:


脉冲频率 0.1-40Hz
pulse frequency:


激光波长：1064um
the laser wavelength:


最大功率：4KW
maximum power:


工作台面积：500X400
Table size:


观察系统：显微镜/工业相机（可选）
Observation system: Microscope / industrial camera(optional)


激光焦距：800MM/100MM(可选Optional)
Laser focus:


冷却水温：≤35℃水温保护45℃
Cooling water temperature: ≤35℃ water temperature protection 45℃


冷却水流量：10L/min
Cooling water flow:


主机外型尺寸：600X1150X1100mm
Host dimensions:


机型简介
MODELS
本公司生产的此款激光点焊机是专门针对不锈钢饰品行业开发的一款专用焊接机，主要应用于金银、不锈钢饰品的补孔，点焊砂眼，饰品的对接。激光点焊过
程属于热传导型，以激光高热能并集中定点的焊接技术，表面热量通过向内部传导向内部扩散，通过控制激激光脉冲、能量、峰值功率和重复频率等参数，使
工件熔化，形成特定的的熔池。由于其独特的优点，已成为首饰行业及微加工行业应用中的典范。
The company producton of this type of laser spot welding machine is dedicated to a special welding machine for stainless steel jewelry industry development, mainly used in gole and silver jewelry,
stainless steel jewelry welding patch hole, trachoma, docking. Laser spot welding belongs to the type of heat conduction, high-energy laser welding technology and focus point, surface heat through
to the interior oriented internal diffusion, by controlling the laser pulse energy, peak power, and repetition frequency and other parameters, the molten pool, the formation of a specific. Because of its
unique advantages, has become the jewelry industry and micro processing paradigm in the field of.


机型特点
THE MACHINE FEATURES
● 采用英国进口陶瓷聚光腔，耐腐浊，耐高温，光电转化效率高，
超长使用寿命。
● 激光能量、脉宽、频率可调，适用于各种金属的焊接。
● 超大的工作台面，人性化的设计，适合长时间的工作不疲劳。
● 速度快、效率高、深度大、变形小、热影响区域小、焊接质量高，
焊点无污染、高效环保。
● 十字光标指示，并采用高速液晶光阀自动遮光，与激光同步输出
的保护气体，保证焊点美观，不会氧化变色
● The British imported ceramic light gathering cavity, resistance to corrosion, high temperature
resistant, high photoelectric conversion efficiency, long service life.
● The laser energy, pulse width, frequency adjustable, applicable for weldingmetal.
● Large working table, humanized design, suitable for long time work not tired.
● Fast speed, high efficiency, large depth, small deformation, small heat affected zone, high
quality welding, solder joint and no pollution, high efficiency and environmental protection.
● Cross cursor indicator, and the high speed liquid crystal light valve automatic light shielding,
shielding gas and laser synchronization output, ensure the solder joint appearance, oxidation
discoloration does not


应用领域
FIELD OF APPLICATION
广泛应用于金银饰品，不锈钢，钦合金，精密铸造产品的焊接、补孔、点焊砂眼、镶嵌部件及爪脚部位的焊接。
Widely used in gold and silver jewelry, stainless steel, titanium alloy, the welding precision casting products, welding, spot welding, fill hole, trachoma embedded parts and claw feet.
