光纤激光切割机

FIDER LASER CUTTING MACHIN

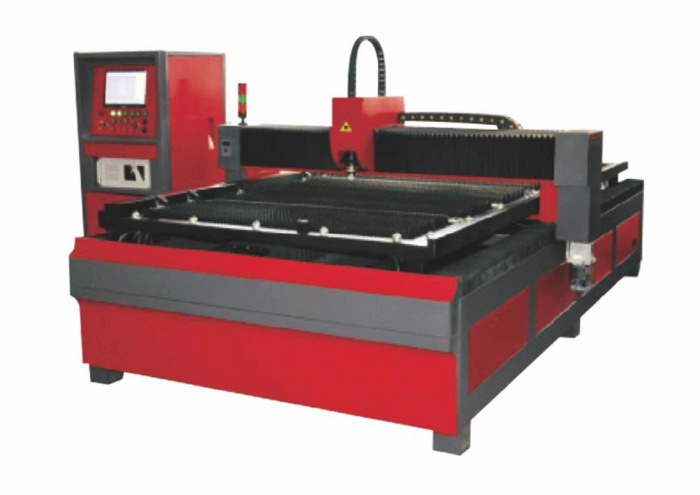

光纤激光切割机


型号(Model):XJ-QG-GJ500


注：设备不断改进，请以实际配置为准
Note: The continuous improvement of equipment,please
subject to actual configuration


主要技术指标
MAIN TECHNICAL SPECIFICATION
项目名称 技术参数
Project name Technical parameters


设备型号 XJ-QG-GJ500
Equipment type


激光器类型 光纤激光器
The type of laser Fiber laser


激光器功率 500W
Laser power


激光波长 1064UM
The laser wavelength


切割范围 3米X1米
Cutting range


切口缝宽 0.05-0.10mm
Cutting seam width


重复定位精度 0.01mm
Repeat positioning accuracy


几何定位精度 ≤±0.025mm/1000mm
The geometric positioning accuracy


电力需求 380V/50HZ/64A
Power demand


机型特点
THE MACHINE FEATURES


● 采用定龙门式结构，整体床身钢性好；导轨采用全封闭防护，减少粉尘污染。
● 选用伺服电机双边驱动，精度高，加工速度高、速度快；
● 进口高精度滚珠丝杆传动、进口高精度直线导轨导向；
● 专用的激光控制系统及专业的CAM软件，功能强大，运行稳定，操作简单、易学；
● 激光加工属非接触式柔性加工，不受工件外形的影响，可以加工任意图形。
机型特点
● The Longmen type structure, the whole bed rail steel is good; the fully enclosed safety, reduce dust pollution;
● The servo motor driven, high precision, high processing speed, speed;
● Imported high precision ball screw drive, imported high precision linear guide;
● Special laser control system and professional CAM software, powerful, stable operation, simple operation, easy to learn;
● Laser machining is a non-contact flexible processing, is not affected by the shape of workpiece, can process arbitrary graph.
